Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	KSV08-47CL-0-N
Certification :	Available
Price :	USD 5- 40 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

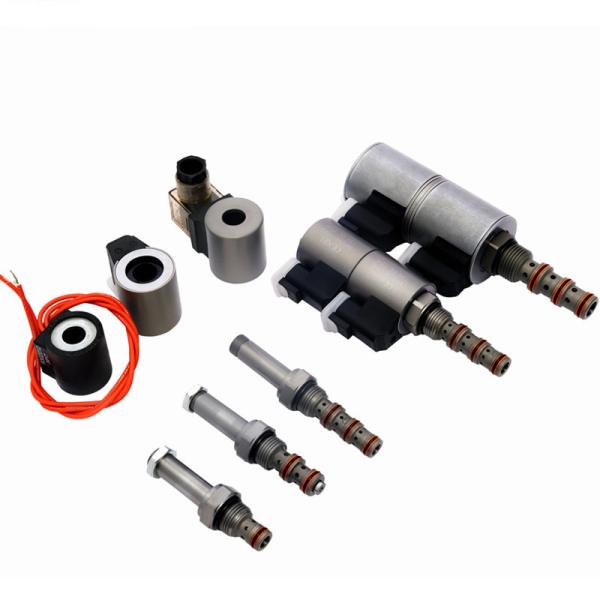

Product Pictures:

KSV08-47CL-0-N dual coils on/off control 4 way 3 position solenoid valve for hydraulic system

Working principle:
KSV08-47CL-0-N presets oil flow to any oil port. When coil 1 is energized, oil is allowed to flow from ③ to ④, and from ② to ①. When coil 2 is energized, oil flows from ③ to ②, and from ④, the oil return oil with increased flow rate should be directed into the oil port ②. Although the oil port ① can be fully pressurized, it cannot control the oil inlet of the valve. Emergency manual control option operation method: During emergency operation, push the knurled handle to control the function of coil 2 (S2), or pull the knurled handle to control the function of coil 2 (S2). The flower handle can control the function of coil 1 (S1).

Characteristics:
Rated pressure: 315 bar, maximum pressure of 1 port is 210Bar,
Rated flow: 11.4L/Min
Leakage volume: 164 ml/Min maximum at 210 bar
Temperature range: -40°C to 120°C, standard nitrile rubber seal
Coil rated load: Continuous operation within 85% to 115% of rated voltage range
Coil initial current at 20°C: Standard coil: 1.67 A at 12 VDC, Type E coil: 1.7 at 12 VDC
Amperes; 0.85 A at 24 VDC
Minimum pick-up voltage: 80% of rated value at 315 bar
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Weight: 0.43Kg
Installation torque: maximum 27Nm, installation hexagon: S24
Valve hole: VC08-4;

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Product technical data:

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Product real pictures :

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Company Exhibitions:

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Our Certificate:

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Product processing procedures:

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Our new factory and workshop :

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Our warehouse:

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Shipment:

Energized Dual Coil Cartridge Solenoid Valve Hydraulic 4 Way 3 Position

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block
