    Threaded Cartridge Solenoid Valve Hydraulic Double Coil Cylinder

    Ask Lasest Price
    Brand Name : Kaienli
    Model Number : KSV08-47A-0-N
    Certification : Available
    Price : USD 5- 40 per piece (depends on the different types )
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : usually about 2 weeks, depends on which type and the quantity demand
    Delivery Time : 2 or 3 weeks, depends on quantity and design
    • Product Details
    • Company Profile

    Threaded Cartridge Solenoid Valve Hydraulic Double Coil Cylinder

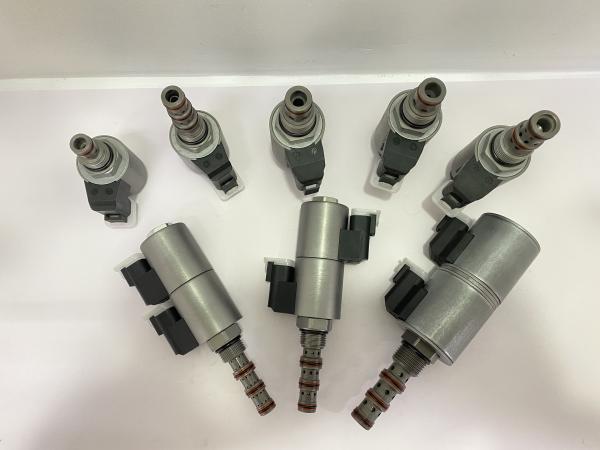

    Product Pictures:


    KSV08-47A-0-N hydraulic solenoid valve with double coil 4 way 3 position threaded on/off control valve


    Working principle:
    Working principle: When the power is cut off, KSV08-47A-0-N stops the oil port of the cylinder and allows the oil to flow from ③ to ①. When coil 1 is energized, the oil can flow from ③ to ② and from ④ to ①. Coil 2
    When powered on, allow the oil to flow from ③ to ④ and from ② to ①. The working oil port flow is caused by the area ratio of the oil cylinder. In an unbalanced oil circuit, the return oil with a large flow rate should be directed to the oil port ②. Although the oil port ① can be fully pressurized, it does not need to be used as the inlet port for the valve. Emergency manual control option operation method: During emergency operation, pushing the knurled handle can control the function of coil 2 (S2); Pulling the knurled handle can control the function of coil 1 (S1).


    Characteristics:
    Working pressure: 210 bar (3000 psi)
    Pressure resistance: 350 bar (5075 psi)
    Flow rate: At a maximum of 11.4L/min and 207 bar (3000 psi), the maximum leakage rate is 278 ml/Min
    Temperature range: -40 ℃ to 120 ℃, standard nitrile rubber seal
    Rated load of coil: capable of continuous operation within the range of 85% to 115% of rated voltage
    Initial current of coil at 20 ℃: Standard coil: 1.2 A at 12 VDC, 115 VAC (full wave rectification)
    At 0.13 amps. E-coil: 1.4A at 12 VDC; 0.7 Amps at 24 VDC
    Minimum pull-in voltage: 85% of rated value at 207 bar (3000 psi)
    Medium: Mineral oil with a viscosity between 7.4 to 420cSt (50 to 2000ssu) or synthetic oil with lubricating properties
    Valve hole: VC08-4

    Threaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil Cylinder

    Threaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil Cylinder

    Threaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil Cylinder


    Threaded Cartridge Solenoid Valve Hydraulic Double Coil CylinderThreaded Cartridge Solenoid Valve Hydraulic Double Coil Cylinder

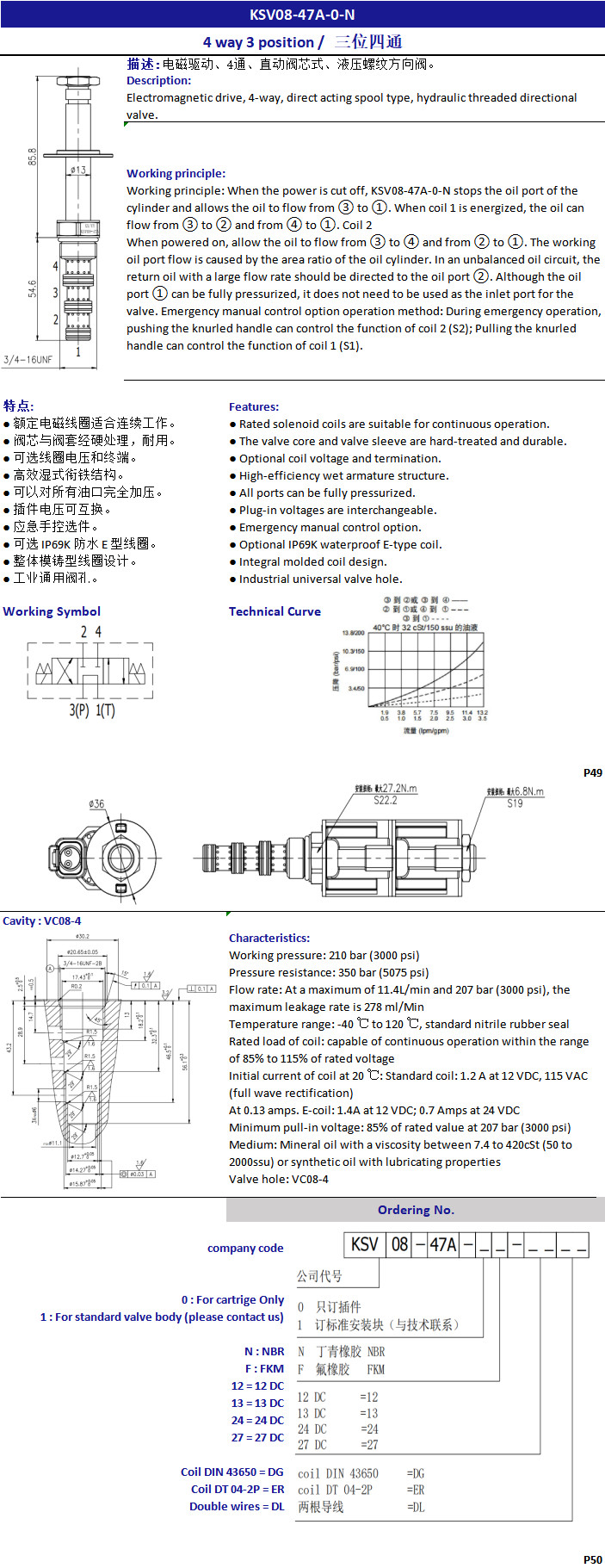

    Product technical data:
