hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	KTS38-20-0-N
Price :	USD 5- 40 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design
Certification :	Available

Add to Cart

Product Details
Company Profile

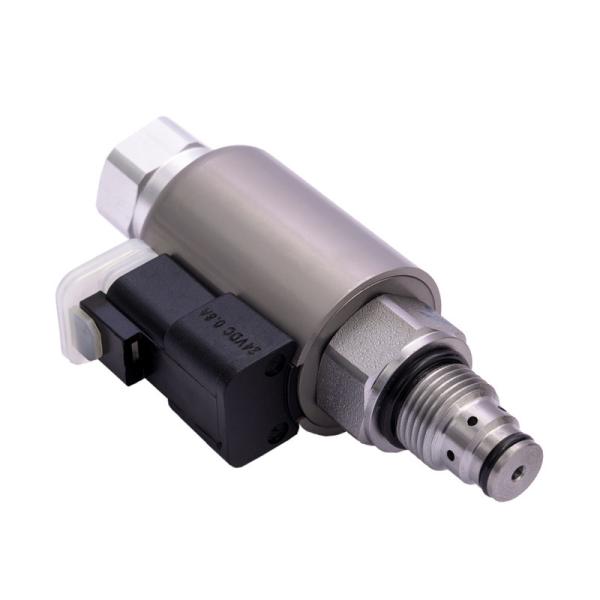

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Product Pictures:

Description :

KTS38-20-0-N two position two way hydraulic proportional relief valve

Threaded plug-in, single stage, seat valve pressure relief valve, utilizing variable electric
Input can achieve continuous adjustment within the specified range. Output pressure and DC
The current input is inversely proportional.

Working principle:
KTS38-20-0-N blocks the flow from ① to ② until the oil port ① obtains sufficient pressure to counteract the electromagnetic driving force. If there is no current in the solenoid valve, the oil can freely flow from ① to ②. Note: The back pressure of port ② will be 1:1 superimposed on the set pressure

Characteristics:
The valve core adopts a return oil buffer structure.
During the proportional overflow process, the pressure is stable and there is no shaking or abnormal noise.
Engineering coil, internal waterproof grade IP67K.
High repetition accuracy.
The temperature rise of the coil will not affect the pressure output by more than 6%.
The sealing ring adopts an integrated retaining ring, suitable for repeated disassembly and high pressure resistance.

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Product technical data:

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Product real pictures :

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Company Exhibitions:

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Our Certificate:

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Product processing procedures:

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Our new factory and workshop :

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Our warehouse:

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Shipment:

hydraulic proportional relief valve Two Position Two Way Solenoid Valve

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block
