Product Pictures:

KSV12-24-0-N excavator hydraulic solenoid valve , VC12 cavity hole with threaded solenoid valve for hydraulic system

Characteristics:
Working pressure: 315 bar. 1 port pressure: 250Bar
Pressure resistance: 350 bar (5075 psi)
Rated flow: 76 L/Min,
Leakage volume: When the working pressure is 250bar, the leakage volume is within 400ml/Min
Temperature range: -40°C to 120°C, standard butadiene rubber seal
Coil power: 30W, voltage 12V output current 2.5A, voltage 24V output current 1.25A
Medium: Foam hose 7.4~420cSt (50~2000ssu) mineral oil or synthetic oil with lubricating effect
Valve hole: VC12-2

Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.

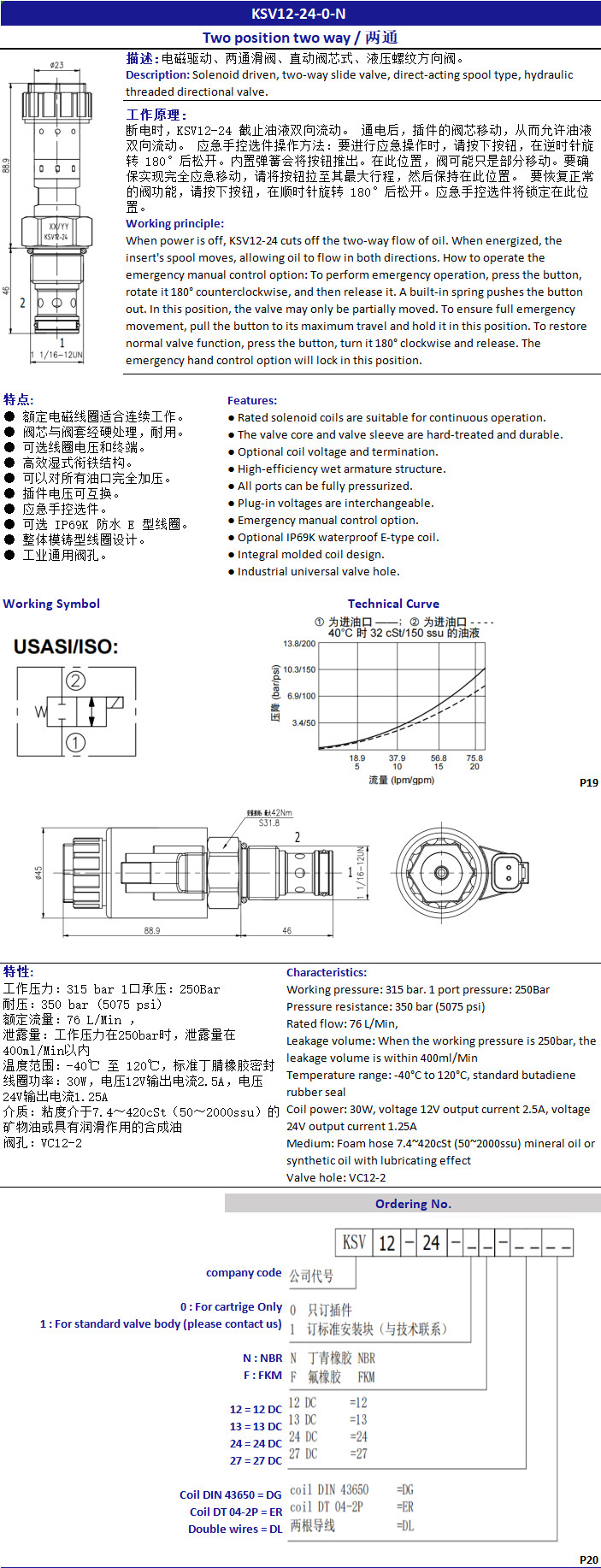

Product technical data:

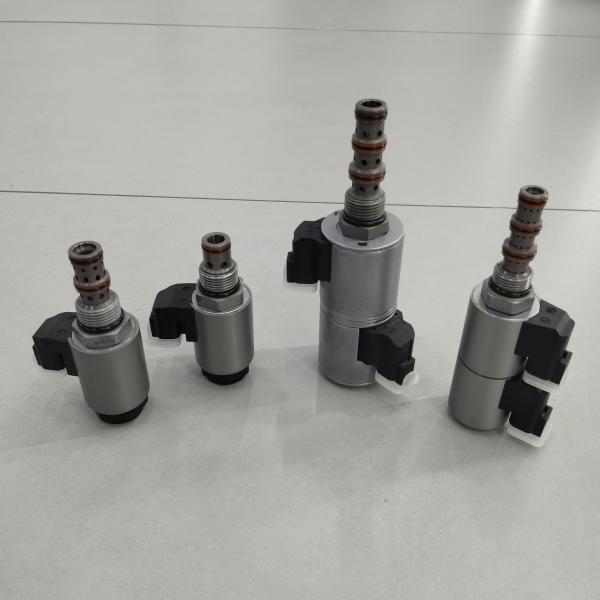

Product real pictures :
