Product Pictures:

KSV10-34L-0-N three way twp position on off control hydraulic solenoid valve hydraforce instead cartridge valve​

Working principle:
When power is off, KSV10-34L allows oil to flow from ② to ① and stops at ③. After energizing, the valve core moves to connect the flow from ② to ③ and cut off at ①. How to operate the emergency manual control option: To perform emergency operation, press the button, rotate it 180° counterclockwise, and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.

Characteristics:
Working pressure: 315 bar, maximum pressure resistance of port 1: 210bar
Pressure resistance: 350 bar (5075 psi)
Rated flow: 22.7L/Min,
Leakage volume: When the working pressure is 207bar, the leakage volume is within 115ml/Min.
Temperature range: -40°C to 120°C, standard nitrile rubber seal
Coil Power: 1.67 A at 12 VDC, 0.18 A at 115 VAC (full wave rectified). E-coil: 1.7 A at 12 VDC; 0.85 A at 24 VDC
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Valve hole: VC10-3;

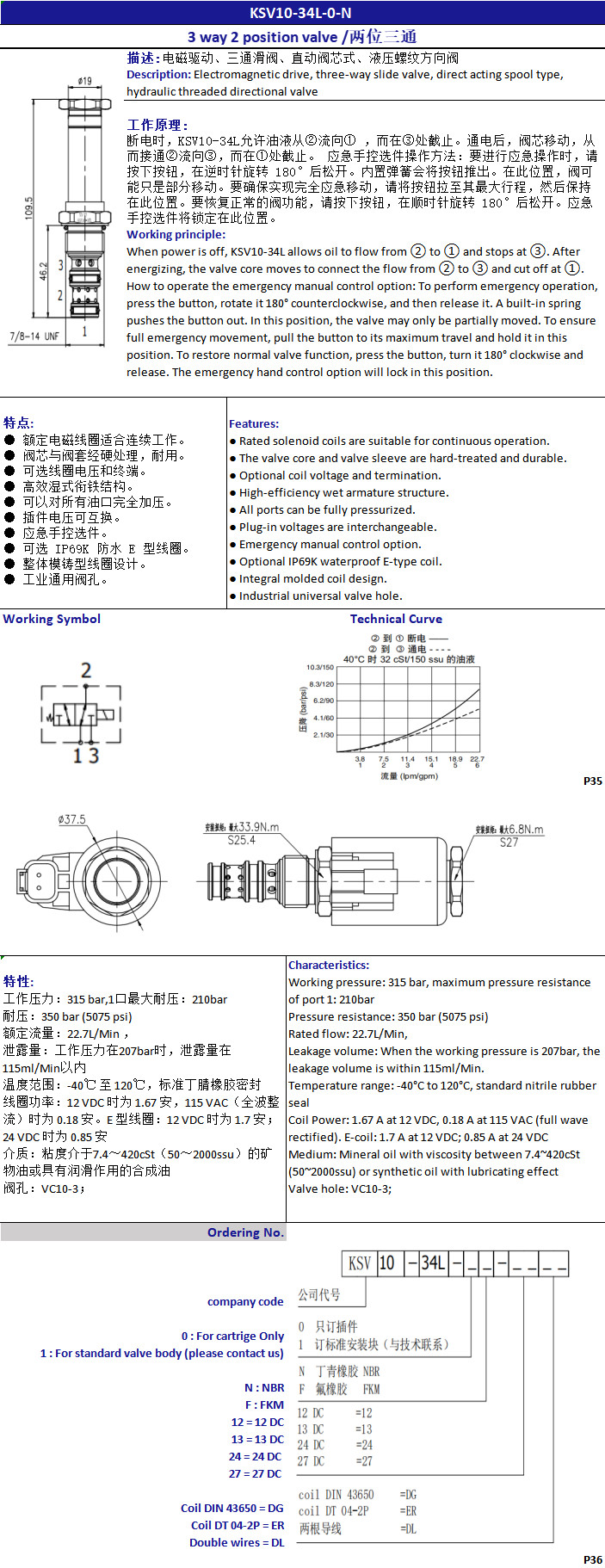

Product technical data:
