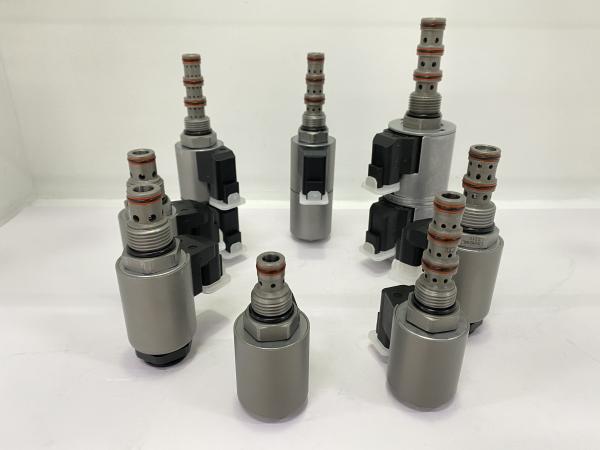

Product Pictures:

KSV08-31L-0-N solenoid-operated cartridge valve ,Hydraulic 3 way 2 position plug in solenoid valve

Working principle:
When the power is off, KSV08-31L-0-N allows oil to flow from ② to ① and stops at ③. After energization, the valve core moves, thereby connecting the flow from ① to ③ and cutting off the flow at ②. How to operate the emergency manual control option: To perform emergency operation, press the button, rotate it 180° counterclockwise, and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.

Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.

Product technical data:

Product real pictures :

Company Exhibitions:

Our Certificate:

Product processing procedures:

Our new factory and workshop :

Our warehouse:

Shipment:

Different Series of Product , more details please contact us directly:
