Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	Pilot oil supply kit
Price :	USD 30-200 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design
Certification :	Available

Add to Cart

Product Details
Company Profile

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

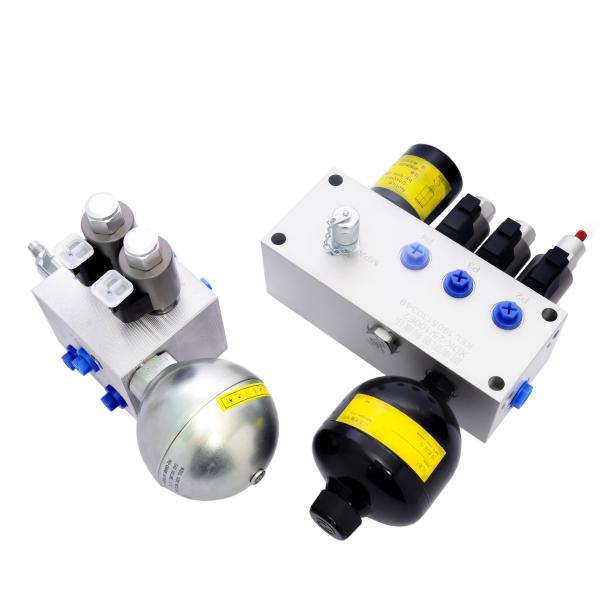

Product Pictures:

Hydraulic pilot oil supply with diaphragm accumulator pilot oil supply unit with functional valve block solenoid valve

Description :

A valve that provides a reduced pressure supply from the main hydraulic system suitable for pilot hydraulic operation. Accumulator and electric isolation valves are available as options. Hydraulic supply units, Accumulators and recharge kits, Filters and EEPROM programmer for PWM controls.

Input pressure P min 8 bar, max 350 bar
Output pressure S (nominal) 30 bar
Max pressure on drain port T 3 bar
Relief valve setting (nominal) 45 bar
Max accumulator pressure 210 bar (Nitrogen pre-charge 13 bar)
Flow capacity at port S 5 l/min without accumulator up to 40 l/min with accumulator

Some reference drawing oil pilot oil supply manifolds:

Sample 1

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Sample 2

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Product real pictures :

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Company Exhibitions:

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Our Certificate:

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Product processing procedures:

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Our new factory and workshop :

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Our warehouse:

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Shipment:

Pressure Safety Pilot Valve Solenoid Pilot Oil Supply Valve Block

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block
