2 Position 6 Way Hydraulic Solenoid Valve 30W IP65K Waterproof Level

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	K72027-12DG
Certification :	available
Price :	USD 5- 40 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

2 Position 6 Way Hydraulic Solenoid Valve 30W IP65K Waterproof Level

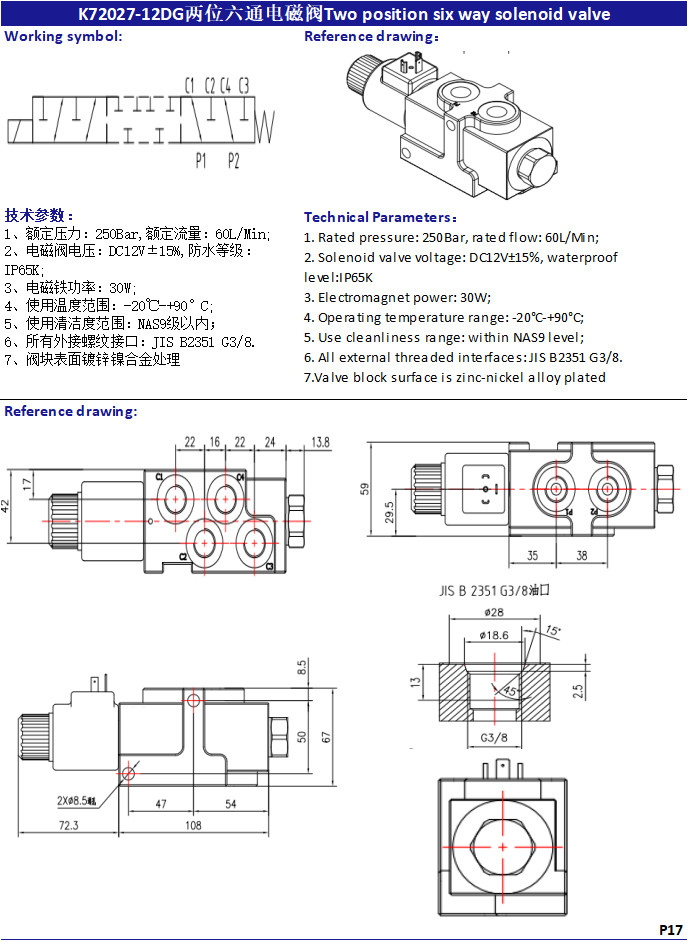

Product Pictures:

Description :

K72027-12DG solenoid valve with DIN43650 DG connector six way two position hydraulic valve

Technical Parameters:
1. Rated pressure: 250Bar, rated flow: 60L/Min;
2. Solenoid valve voltage: DC12V±15%, waterproof level:IP65K
3. Electromagnet power: 30W;
4. Operating temperature range: -20°C-+90°C;
5. Use cleanliness range: within NAS9 level;
6. All external threaded interfaces: JIS B2351 G3/8.
7.Valve block surface is zinc-nickel alloy plated
