KAIENLI 6 Way 2 Position Solenoid Valve, Solenoid Control Valve With 12V 24V ER Or DG Connector Hydraulic Electric Valve

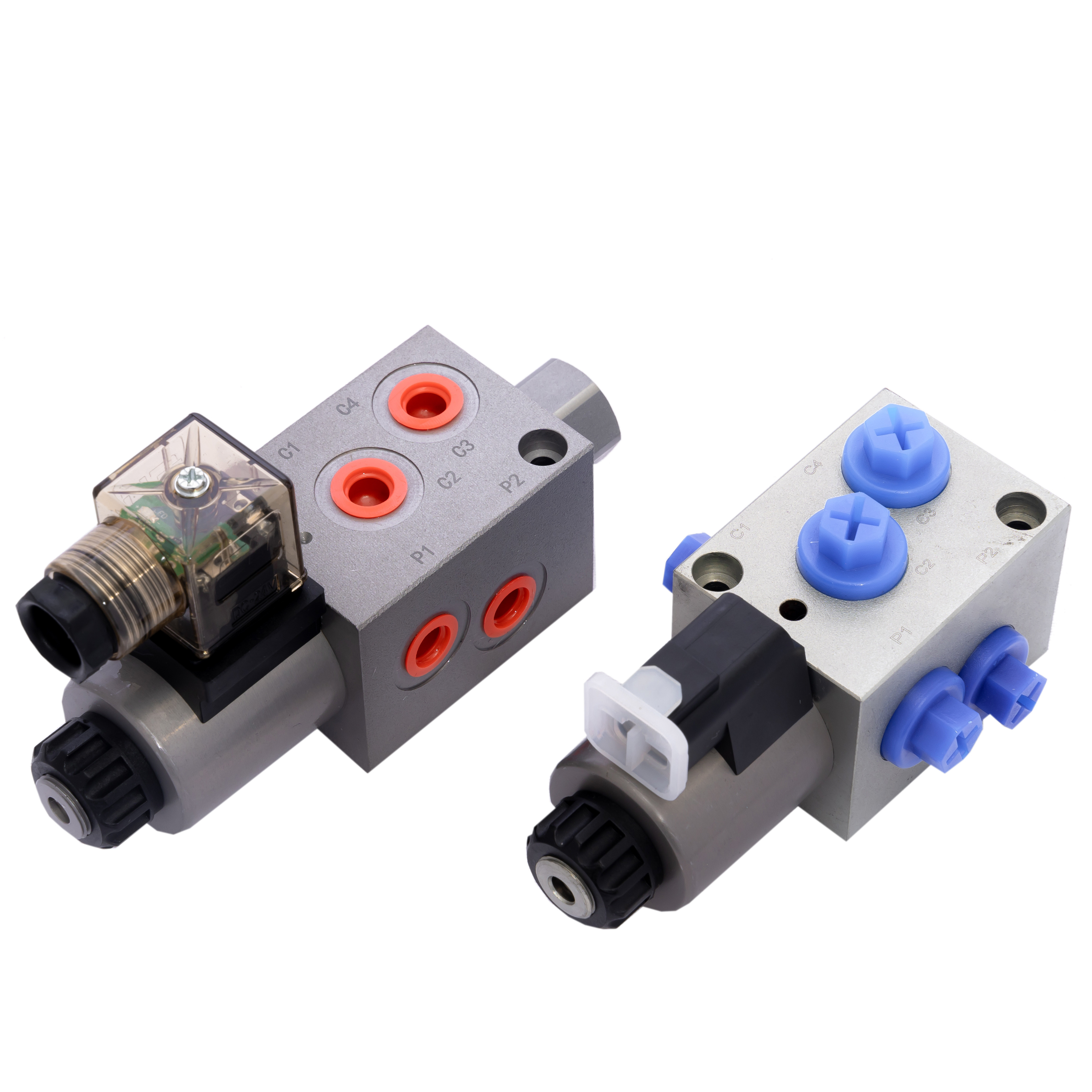

Product Pictures:

Description :

6 way 2 position solenoid valve, solenoid control valve with 12V 24V ER or DG connector Hydraulic electric valve

Techanical reference:
Rated pressure: 25MPa
Maximum peak pressure: 31MPa
Rated flow rate: 25L/Min
Leakage rate: within 25ml/Min, at a pressure of 100Bar
Threaded interface: G1/4 SAE4-JIS B 1/4 Ports: G1/4 SAE4-JIS B 1/4

A 2-position 6-way solenoid valve is a specific type of solenoid valve that has two distinct positions and six possible flow paths. It is commonly used in pneumatic or hydraulic systems where precise control of fluid flow and direction is required.

Here's a breakdown of its key features:

1. Two Positions: The valve has two stable positions, typically referred to as "A" and "B". When the solenoid is de-energized, the valve remains in one position, and when the solenoid is energized, it switches to the other position.

2.


3. Six Flow Paths: The valve has six ports or connections labeled as P1, P2, P3, P4, P5, and P6. Depending on the position of the valve, these ports are interconnected in different ways, allowing for six possible flow paths. The specific configuration of these flow paths depends on the design and purpose of the valve.

4.


5. Flow Control: The valve controls the direction and flow of fluids or gases by selectively opening or closing different pathways between the ports. By energizing or de-energizing the solenoid, the valve switches between its two positions, altering the flow path and enabling fluid to flow in the desired direction.

6. Applications: 2-position 6-way solenoid valves are commonly used in complex pneumatic and hydraulic systems where precise control of fluid flow and direction is required. They find applications in industries such as manufacturing, automation, robotics, and process control.

7.


It's important to note that the specific design and configuration of a 2-position 6-way solenoid valve can vary depending on the manufacturer and application requirements. Therefore, it's always recommended to consult the valve's datasheet or manufacturer's specifications for detailed information on its operation and installation.

Product technical data:
