Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	KRPKC
Certification :	available
Price :	USD 5- 40 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Product Pictures:

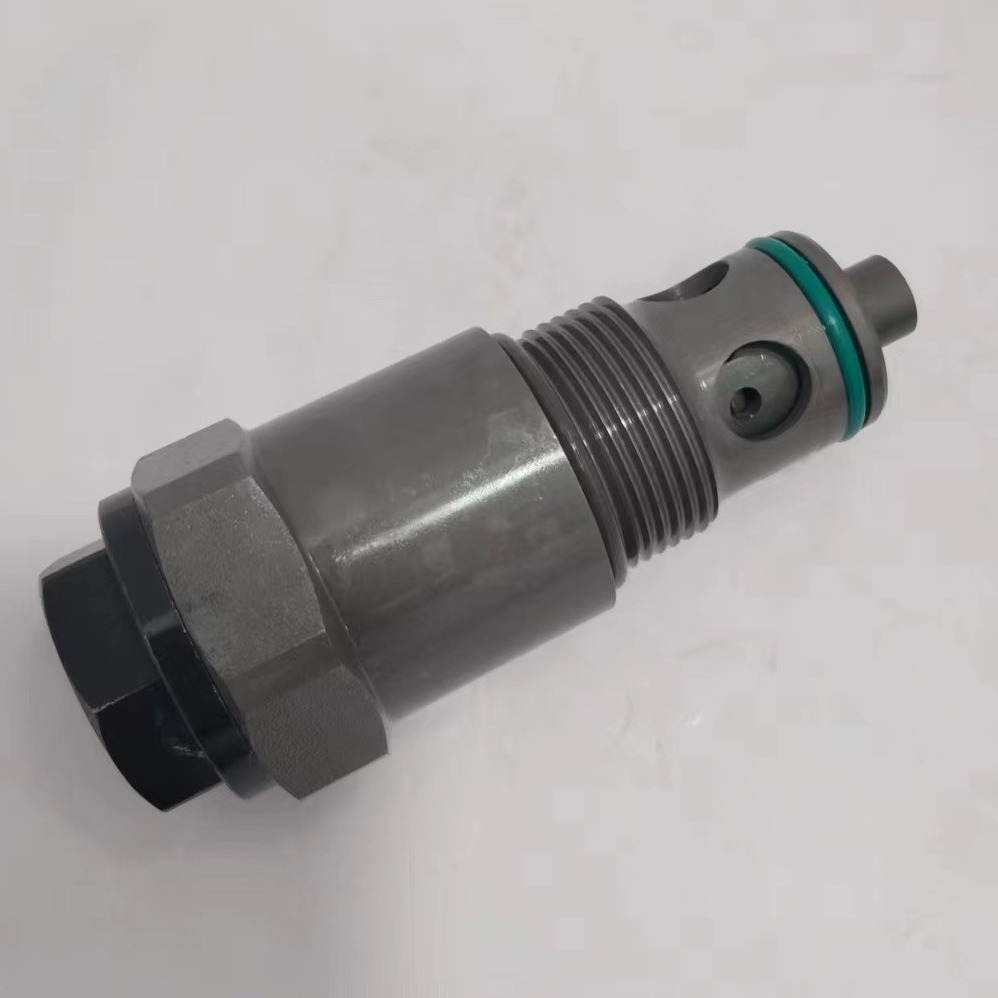

KRPKC hydraulic valve with flow 760lpm pressure 420bar customized relief valve

Description:
Threaded plug-in and pilot type remote control overflow valve

Working Principle:
The pilot controlled, balanced slide valve structure overflow valve is a normally closed pressure regulating valve. When the pressure at the inlet (port 1) reaches the set value of the valve, the valve begins to overflow towards the oil tank (port 2), throttling to regulate the pressure. This type of valve has high pressure regulation accuracy, small pressure fluctuations with flow rate, stable regulation, low noise, and moderate response speed

Technical parameters:

Rated pressure: 420 bar
Rated flow rate: 760 lpm
Internal leakage rate: within 200ml/Min at 100 bar for one port
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Filter: Within NAS9 level
Medium: Recommended 46 # anti wear hydraulic oil
Weight: 1.18Kg
Installation torque: 474-508N. m
Valve hole: T-18A;

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Product technical data:

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Product real pictures :

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Company Exhibitions:

2023 Shanghai PTC AISA Exhibition

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Our Certificate:

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Product processing procedures:

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Our new factory and workshop :

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Our warehouse:

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Shipment:

Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
