Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	KPR50-38A-0-N
Certification :	Available
Price :	USD 3-42 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

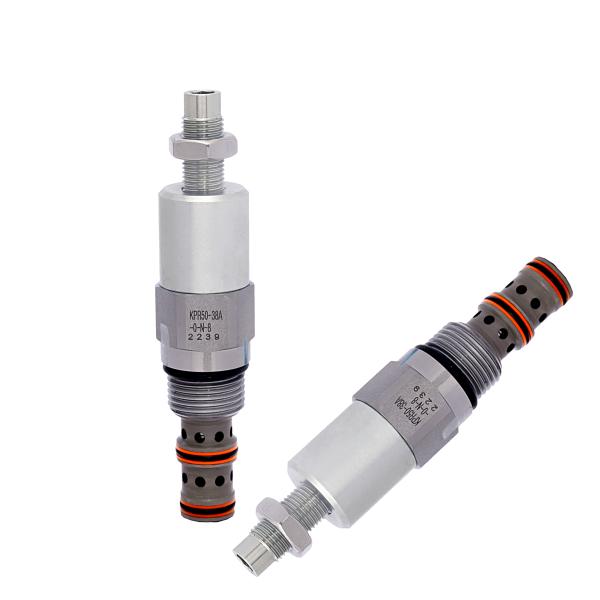

Product Pictures:

Description :

KPR50-38A-0-N Hydraulic Sun and Hydraforce series cartridge pressure reduce valve

Technical parameters:
Rated pressure: 350 bar
Rated flow rate: 60L/Min
Internal leakage rate: maximum 82ml/min at 207 bar for 3 ports
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Filter: Within NAS9 level
Installation torque: 34-37Nm, installation hexagon: S25.4
Medium: Mineral oil with a viscosity between 7.4 to 420 cSt (50 to 2000 ssu) or synthetic oil with lubricating properties
Weight: 0.27Kg
Valve hole: VC10-3

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Product technical data:

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

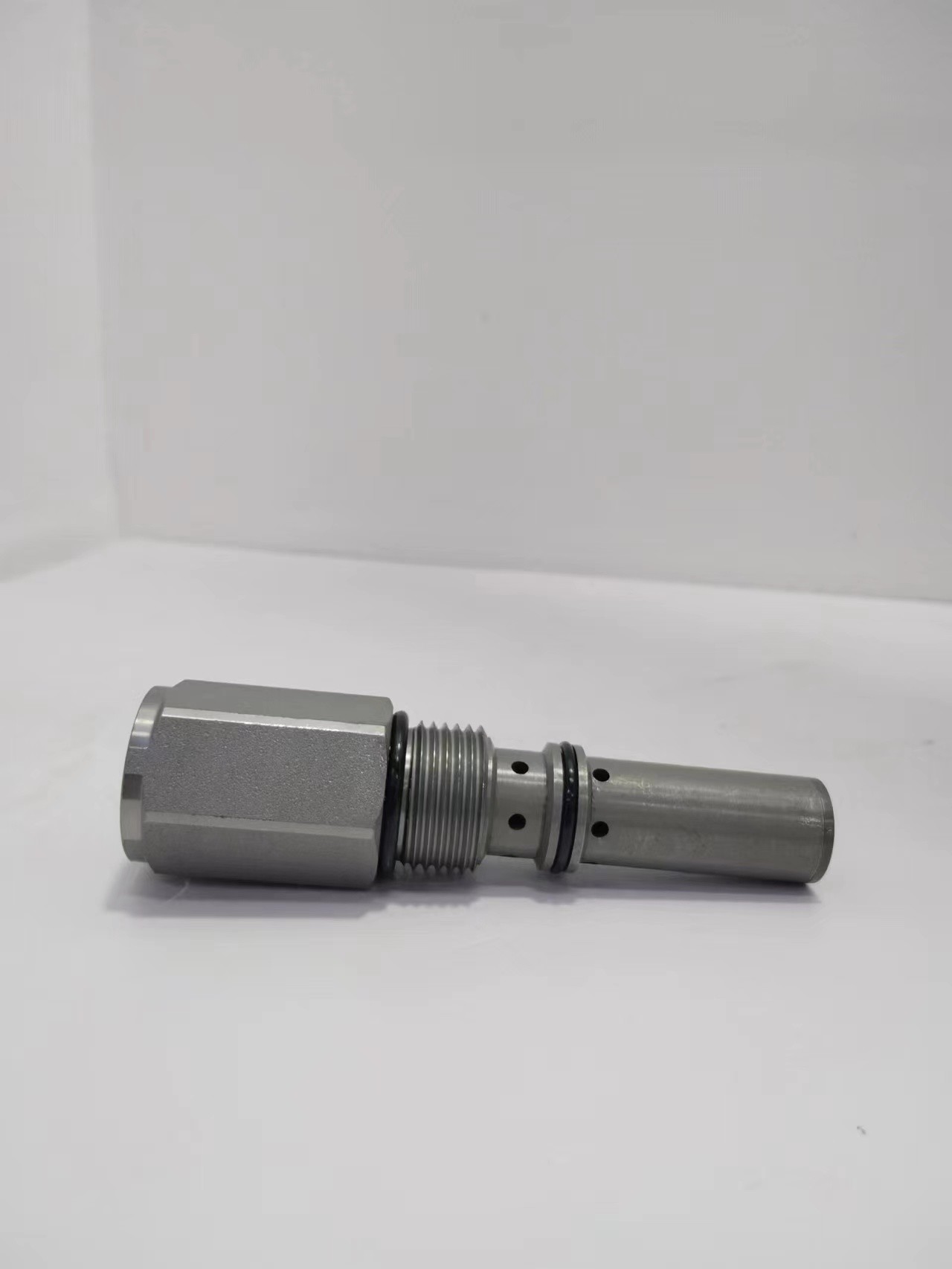

Product real pictures :

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

PTC Exhibition:

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Company Exhibitions:

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Our Certificate:

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Product processing procedures:

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Our new factory and workshop :

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Our warehouse:

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Shipment:

Spool 3 Way Pressure Reducing Valve Hydraforce Pressure Release Valve

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
