T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	KRVIA
Certification :	available
Price :	USD 5- 40 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Product Pictures:

Description :

KRVIA Hydraulic Relief Valve With 480 Lpm Flow Pressure 420 Bar T-19A Flow Valve

Technical parameters:

Rated pressure: 420 bar
Rated flow rate: 480 lpm
Pilot control flow rate: 0.25-0.33L/min
Internal leakage rate: within 200ml/Min at 100 bar for one port
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Filter: Within NAS9 level
Medium: Recommended 46 # anti wear hydraulic oil
Weight: 1.43Kg
Installation torque: 474-508N. m
Valve hole: T-19A;

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

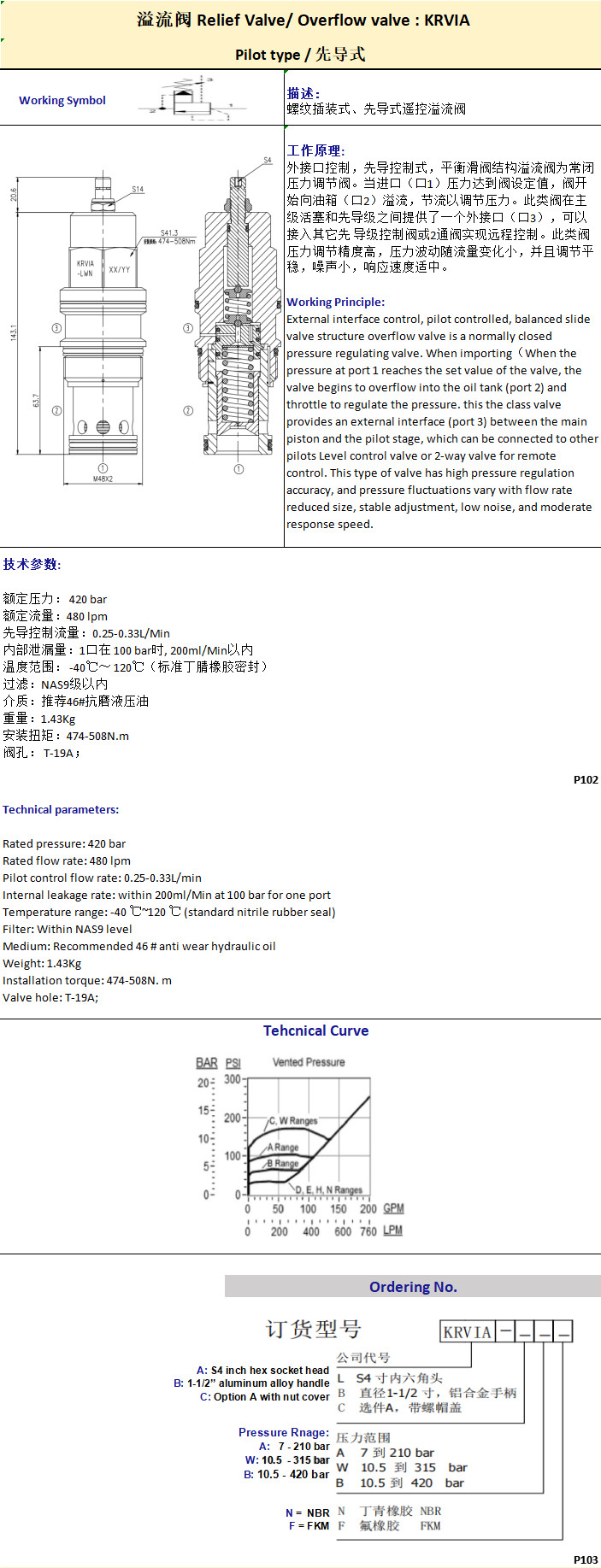

Product technical data:

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

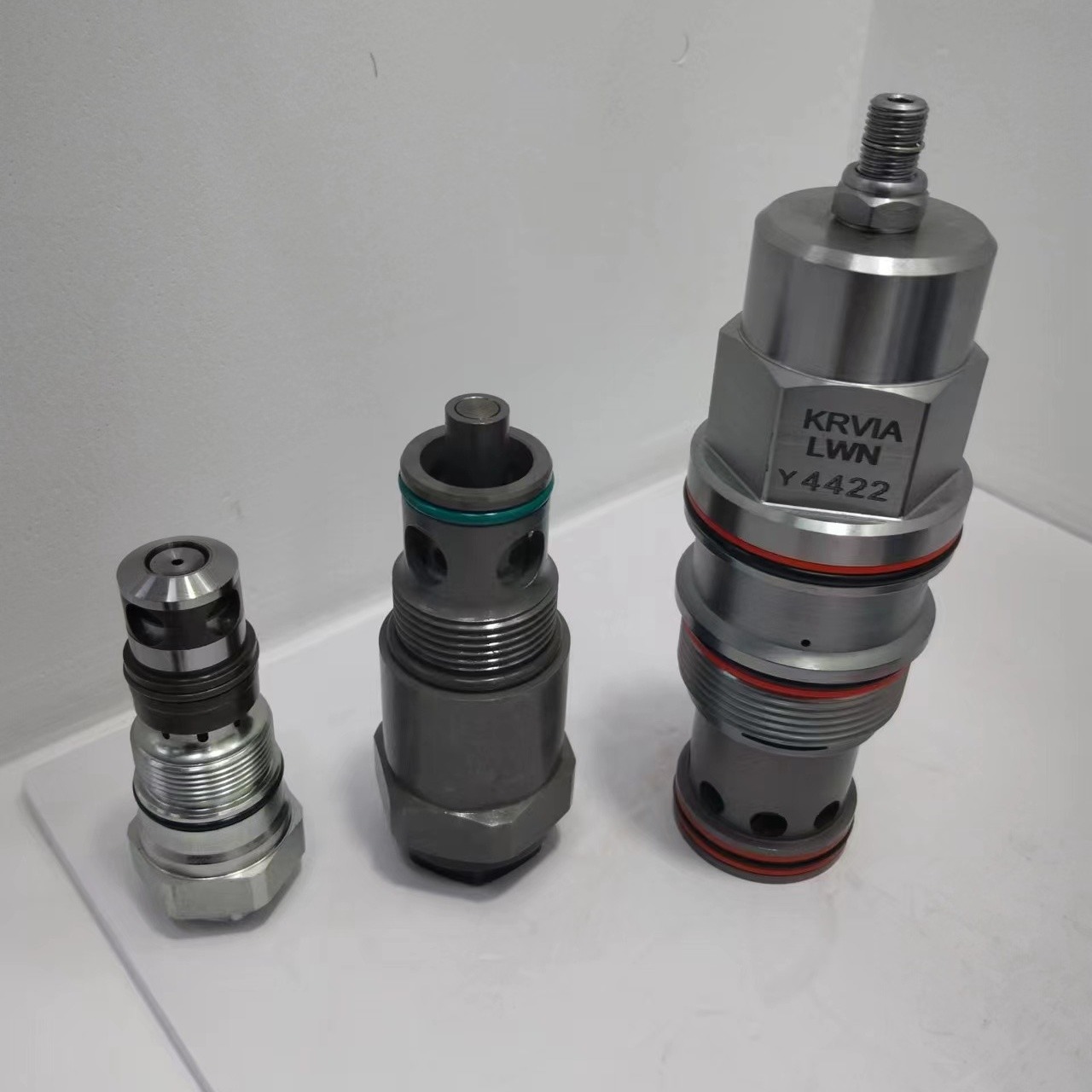

Product real pictures :

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Company Exhibitions:

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Our Certificate:

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Product processing procedures:

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Our new factory and workshop :

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Our warehouse:

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Shipment:

T-19A cavity Hydraulic Relief Valve 480 Lpm Pressure Overflow Control Valve

Different Series of Product , more details please contact us directly:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block
