350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	KRVS-S10
Certification :	available
Price :	USD 5- 40 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Product Pictures:

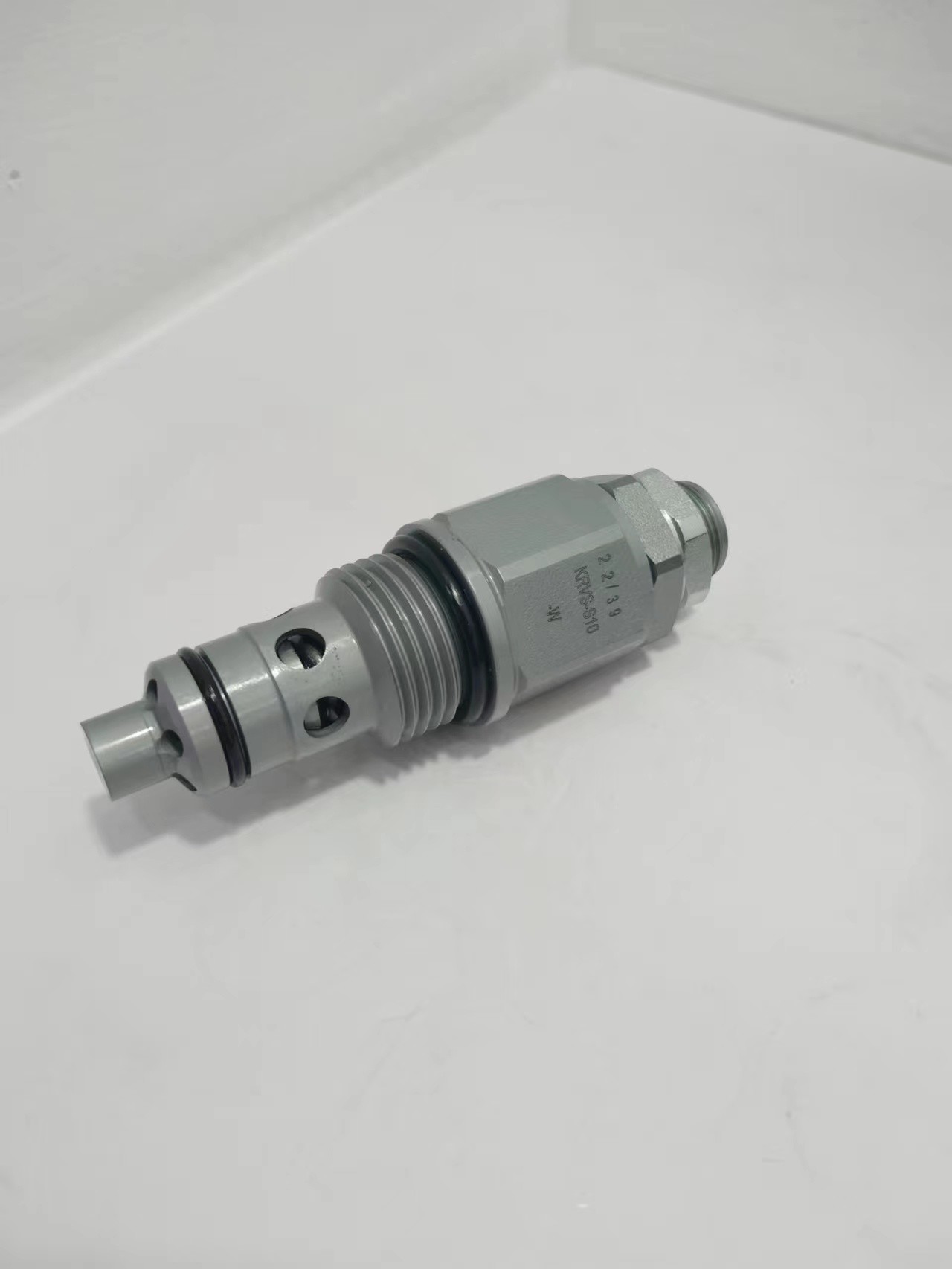

KRVS-S10 steel hydraulic relief valve with heat treatment surface high quality over flow valve

Working Principle:
KRVS-S10 type, when the pressure value of port 1 exceeds the spring setting, the oil flows from port 1 to port 2, and port 1 is connected to the pressure
Oil, 2 ports return oil. With a buffering structure, it ensures that there will be no pressure vibration or noise during low flow rates. Take the maximum pressure limit in the hydraulic system to ensure the stability of the hydraulic system.

Rated pressure: 350 bar
Flow rate: up to 80 lpm
Internal leakage rate: 2 ports at 10 bar, maximum 5 drops/minute
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Filter: Within NAS9 level
Medium: Mineral oil with viscosity between 7.4 to 420 cSt (50 to 2000 ssu) or with lubricating properties
Synthetic oil with sliding effect
Weight: 0.17Kg
Installation torque: 55-65N. m
Valve hole: VC10-2; Note that the minimum depth of the oil hole is 42mm, with a minimum diameter of Ø 12

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Product technical data:

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Product real pictures :

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Company Exhibitions:

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Our Certificate:

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Product processing procedures:

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Our new factory and workshop :

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Our warehouse:

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Shipment:

350 Bar Hydraulic Pressure Overflow Relief Valve With Heat Treatment Surface

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
