Small Hydraulic Directional Valve CV06 one way check valve harded

Ask Lasest Price
Brand Name :	Kaienli
Model Number :	KCV06-20
Certification :	available
Price :	USD 1- 5 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

Small Hydraulic Directional Valve CV06 one way check valve harded

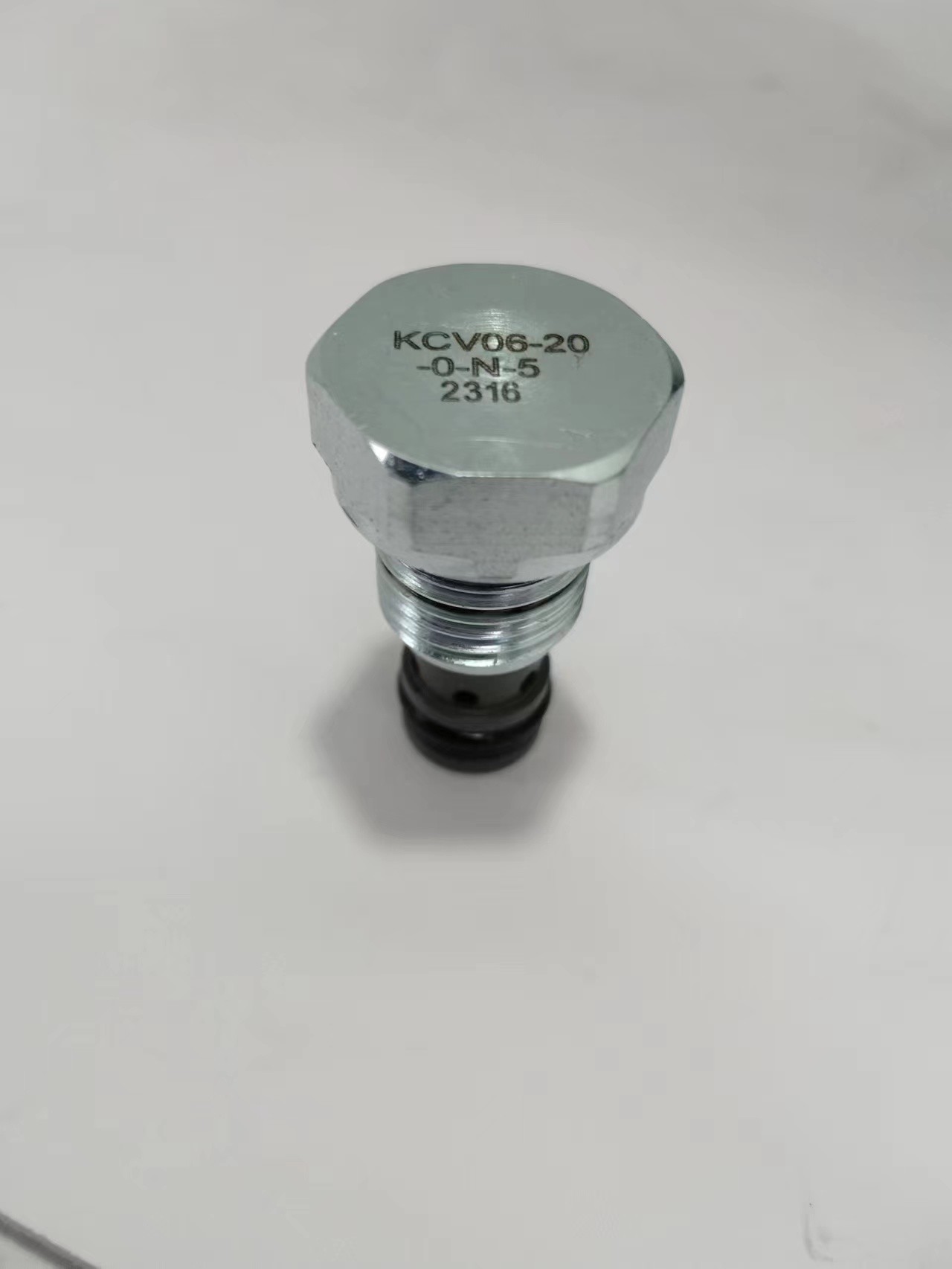

Product Pictures:

Description :

KCV06-20 small size one way check valve with harded treatment antirusting surface CV06 valve

Technical parameters:

Working pressure: 315 bar (4553 psi)
Pressure resistance: 350 bar (5075 psi)
Rated flow rate: 30L/Min, see performance chart
Internal leakage rate: at 250 bar (3625 psi), maximum 0.1ml/min (2 drops/min)
Definition of opening pressure: When the flow rate reaches 16.4 milliliters per minute (1 cubic inch per minute pressure test value bar (psi))
Standard opening pressure: 0.3 bar (4 psi); 0.7 bar (10 psi); 1.7 bar (25 psi); 4.1 bar (60 psi)
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Medium: Mineral oil with a viscosity between 7.4 to 420 cSt (50 to 2000 ssu) or synthetic oil with lubricating properties
Valve hole: VC08-2

Small Hydraulic Directional Valve CV06 one way check valve harded

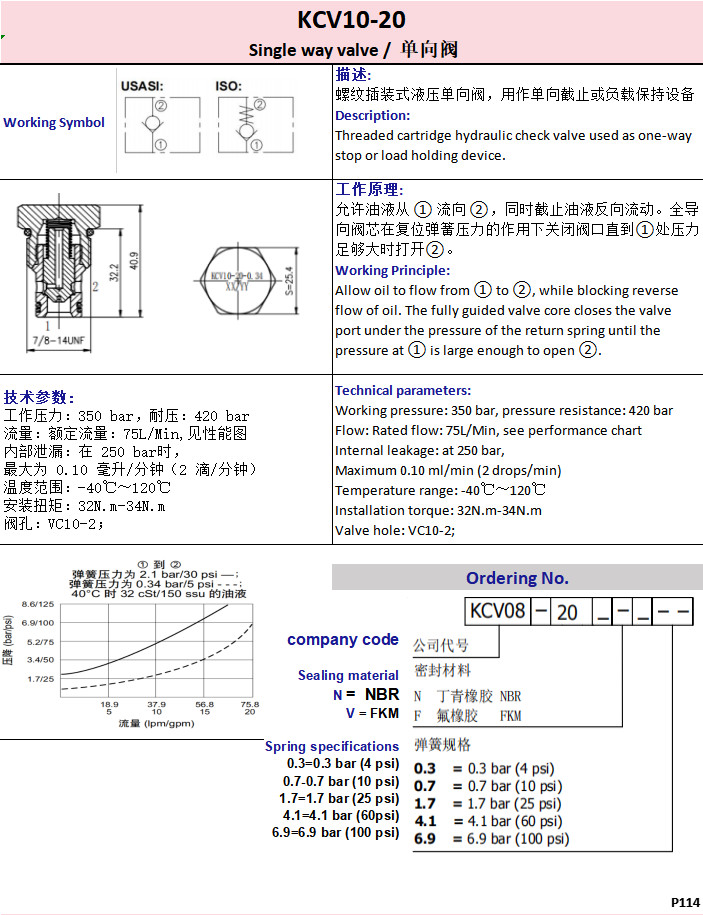

Product technical data:

Small Hydraulic Directional Valve CV06 one way check valve harded

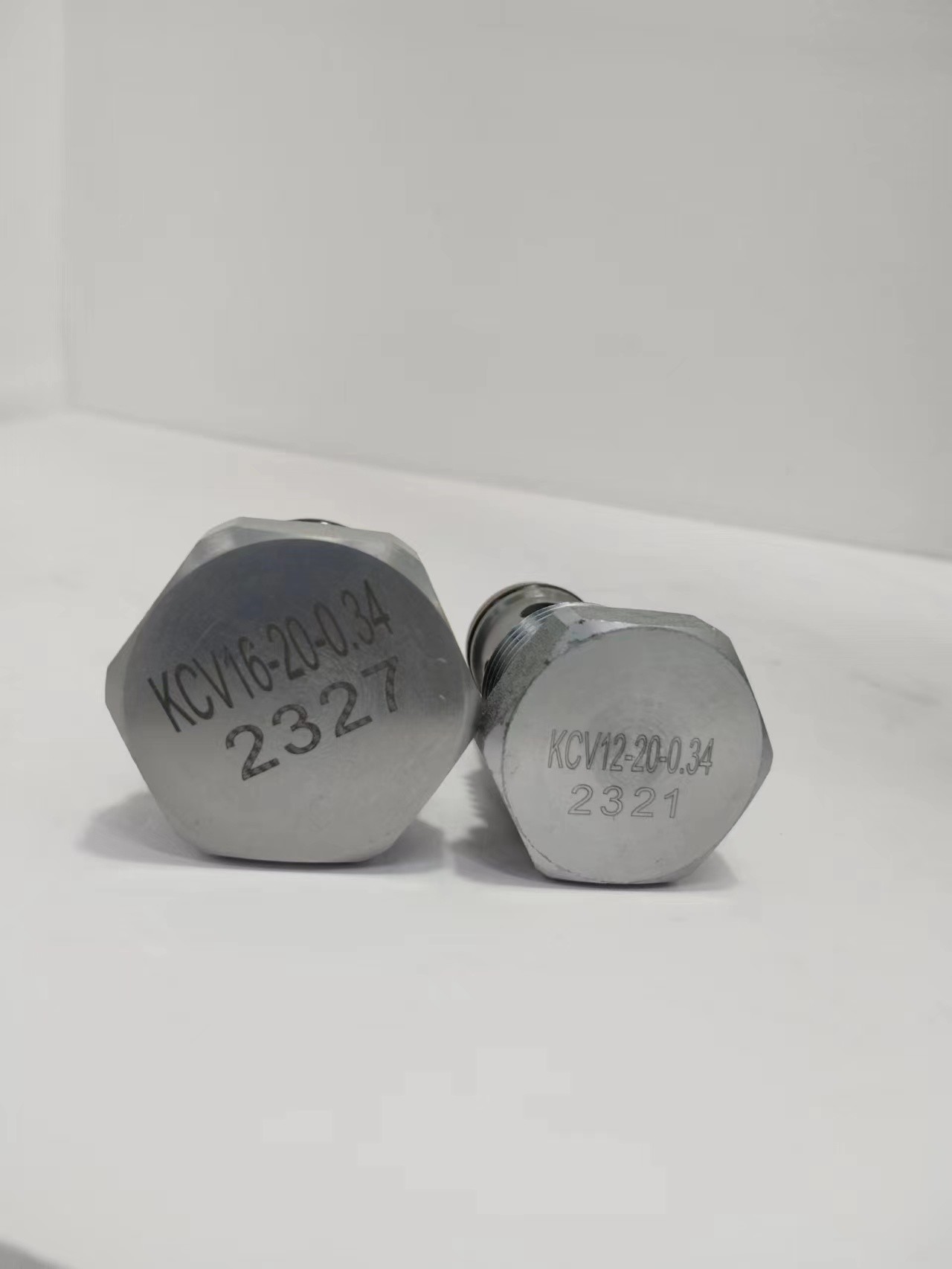

Product real pictures :

Small Hydraulic Directional Valve CV06 one way check valve harded

Company Exhibitions:

2023 Shanghai PTC AISA exhibition

Small Hydraulic Directional Valve CV06 one way check valve harded

Our Certificate:

Small Hydraulic Directional Valve CV06 one way check valve harded

Product processing procedures:

Small Hydraulic Directional Valve CV06 one way check valve harded

Our new factory and workshop :

Small Hydraulic Directional Valve CV06 one way check valve harded

Our warehouse:

Small Hydraulic Directional Valve CV06 one way check valve harded

Shipment:

Small Hydraulic Directional Valve CV06 one way check valve harded

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block
