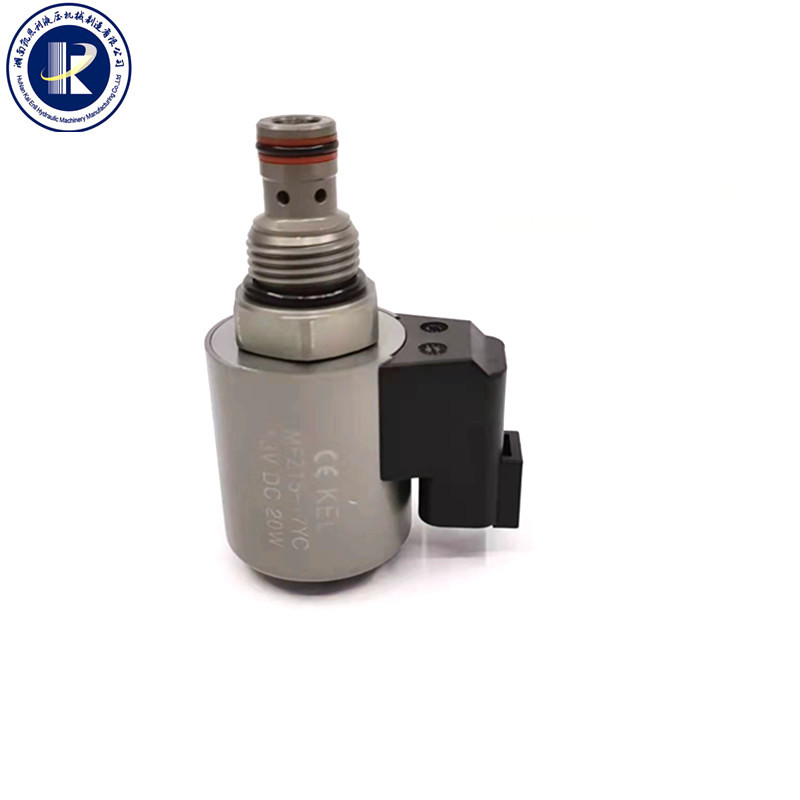

Product Pictures:

Description

A solenoid-operated, 2 way, normally closed, poppet-type, screw-in hydraulic cartridge valve, with standard (sv10-22) and manual override (mo) options. This valve is intended for low leakage blocking and load holding applications.

Operation

When de-energized, the SV10-22X acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the poppet lifts to open the port 2 to port 1 flow path, while also allowing flow from port 1 to port 2.

Features

• Continuous-duty rated coil.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Industry common cavity.

Product technical data:

Product real pictures :

Company Exhibitions:

Our Certificate:

Product processing procedures:

Our new factory and workshop :

Our warehouse:

Shipment:

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Welcome your visit and inquiry !
