24V Voltage

Ask Lasest Price
Brand Name :	Kaienli brand
Model Number :	KSV08-30
Certification :	Available
Price :	USD 5- 40 per piece (depends on the different types )
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	usually about 2 weeks, depends on which type and the quantity demand
Delivery Time :	2 or 3 weeks, depends on quantity and design

Add to Cart

Product Details
Company Profile

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

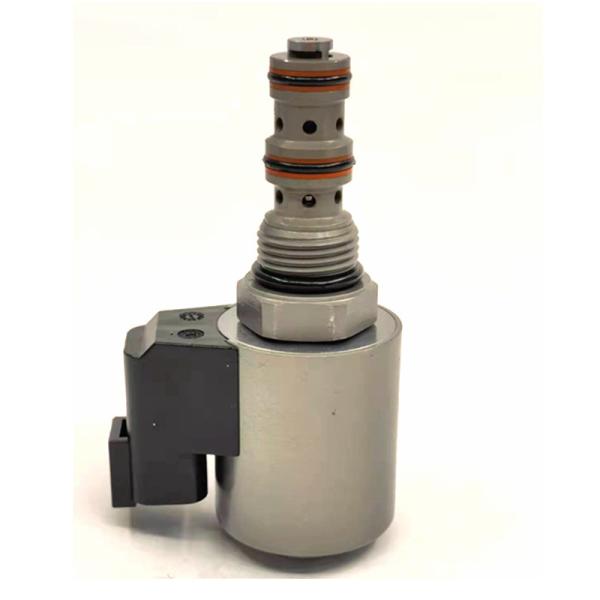

Product Pictures:

KSV08-30-0-N solenoid flow control valve, solenoid hydraulic valve with 3 way three position

Working principle:

During power outage, KSV08L-30 allows oil to flow from ② to ①, while

③ Stop at. After being powered on, the valve core of the plug-in moves, connecting

③ to ②, and stopping the flow of oil from ①. The oil port ① can be used as an

oil inlet, and the pressure cannot exceed 210Bar. Emergency manual control options

Operation method: To perform emergency operations, please press the button and

rotate it counterclockwise 180 ° before releasing it. The built-in spring will push the

button out. At this position, the valve may only partially move. To ensure complete

emergency movement, pull the button to its maximum travel and hold it in this

position. To restore normal valve function, press the button and rotate 180 °

clockwise before releasing. The emergency manual control option will be locked in

this position.

Features:

● Rated solenoid coils are suitable for continuous operation.

● The valve core and valve sleeve are hard-treated and durable.

● Optional coil voltage and termination.

● High-efficiency wet armature structure.

● All ports can be fully pressurized.

● Plug-in voltages are interchangeable.

● Emergency manual control option.

● Optional IP69K waterproof E-type coil.

● Integral molded coil design.

● Industrial universal valve hole

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

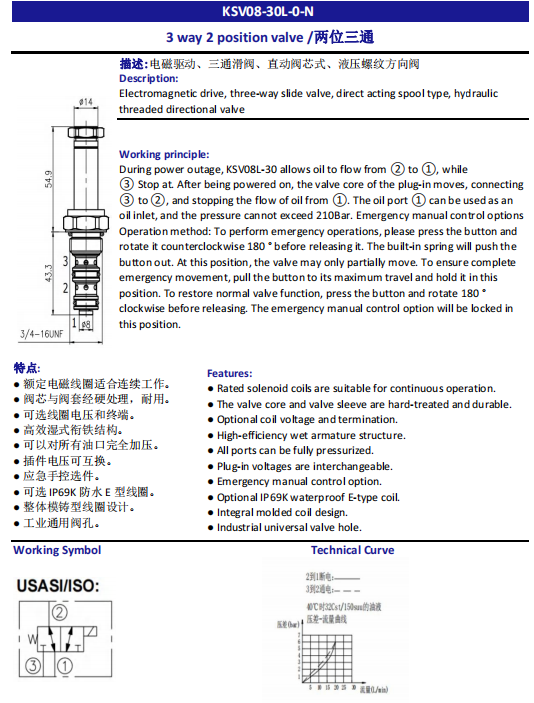

Product technical data:

Product real pictures :

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

Company Exhibitions:

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

Our Certificate:

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

Product processing procedures:

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

Our new factory and workshop :

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

Our warehouse:

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

Shipment:

Flow Control SV08-30 Hydraulic Cartridge Solenoid Valve With 12V/13V/17V/24V Voltage

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block
