Product Pictures:

Description :

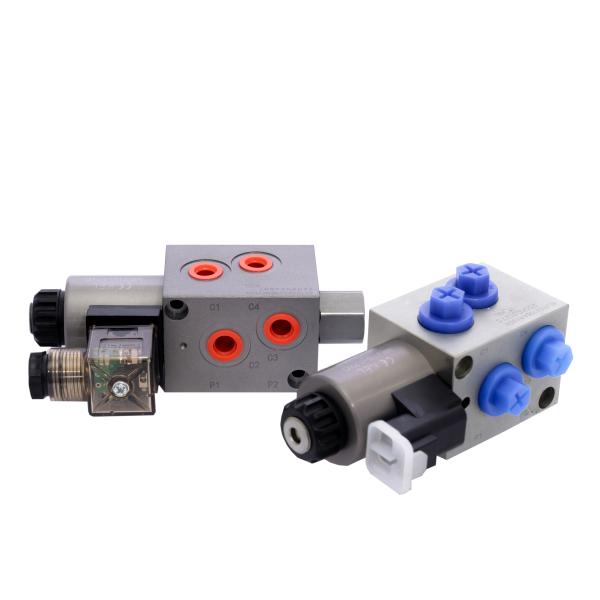

6 way 2 position solenoid valve, solenoid control valve with 12V 24V ER or DG connector Hydraulic electric valve

A 6-way diverter solenoid valve is a valve that controls the flow of a fluid in six different directions. It is used to divert fluid from one line to another, or to combine fluid from two or more lines.

6-way diverter solenoid valves have six ports, each of which is connected to a fluid line. The ports are numbered 1 to 6, and fluid can flow from any port to any other port.

They have a variety of applications such as lifting machinery, agricultural machinery and industrial machines.

Techanical reference:
Rated pressure: 25MPa
Maximum peak pressure: 31MPa
Rated flow rate: 25L/Min
Leakage rate: within 25ml/Min, at a pressure of 100Bar
Threaded interface: G1/4 SAE4-JIS B 1/4 Ports: G1/4 SAE4-JIS B 1/4

Directional control valves are one of the core elements in a hydraulic circuit. They help directing the fluid to different components in the system.

Directional control valves perform only three functions:

1. Stop fluid flow
2. Allow fluid flow
3. Change direction of fluid flow

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hidros provide monoblock directional control valves with different capacities and spool control options such as hydraulic, pneumatic or with cables/joysticks.

DVS valves are 6 ways, 2 positions (6/2) solenoid operated valves. They are used for selective connection of different cylinders/hydraulic motors in the application. When valve is de-energised, oil directs from D & C ports to first actuator. When valve coil is energised, oil directs from A & B ports to second actuator.

A solenoid valve is an electromechanical device used to control the flow of fluids or gases. It consists of a coil of wire (solenoid) wrapped around a ferromagnetic core, a movable plunger or piston, and an orifice or valve seat.

When an electric current is applied to the solenoid coil, it generates a magnetic field that attracts the movable plunger or piston towards the core. This movement opens or closes the valve, allowing or blocking the flow of the fluid or gas through the orifice.

Solenoid valves are typically classified into two main types based on their functions: normally closed (NC) and normally open (NO) valves. In a normally closed valve, the flow is blocked when the solenoid is not energized, and the valve opens when the solenoid is powered. Conversely, in a normally open valve, the flow is allowed when the solenoid is not energized, and the valve closes when the solenoid is activated.

Product technical data:

Product real pictures :

Company Exhibitions:

Our Certificate:

Product processing procedures:

Our new factory and workshop :

Our warehouse:

Shipment:

Different Series of Product , more details please contact us directly:
